Model No: LMT023QV001C
2.3 inch 320*240 SPI Interface TFT LCD Module
Retail price
$ 10
Market price
$ 20
LCD Size : 2.3 inch
OD Size (mm) : 50.86*45.83*2.34
AA Size (mm) : 46.75 * 35.06
PIN No.: 24PIN
Interface: SPI
Drive IC: ILI9342C
Backlight LEDs: 60mA
Operating Temp. : -20℃~ + 70℃
Storage Temp.: -30℃~+ 80℃
重量
-
Smart TFT Module
- 1-20
- 21-50
- 51-100
Stock
300
隐藏域元素占位
Product Introduction
LMT023QV001C is a full color 320(R.G.B)*240 TFT LCD display module, diagonal size 2.3 inch. This module is built in with ILI9342C IC; it supports 24pin SPI interface. This model is having module dimension of 50.86*45.83*2.34mm and Active area size of 46.75 * 35.06mm.
This 2.3" TFT LCD display with ILI9342C IC is featured with brightness 500 cd/m2(typical value). it can be operating at temperatures from -20℃ to 70℃; its storage temperatures range from -30℃ to 80℃. LMT023QV001C-It can be used in any embedded systems,industrial device.
Support customized touch, brightness, interface, resolution. Please leave detailed information and our team will contact you quickly to provide you with a solution.

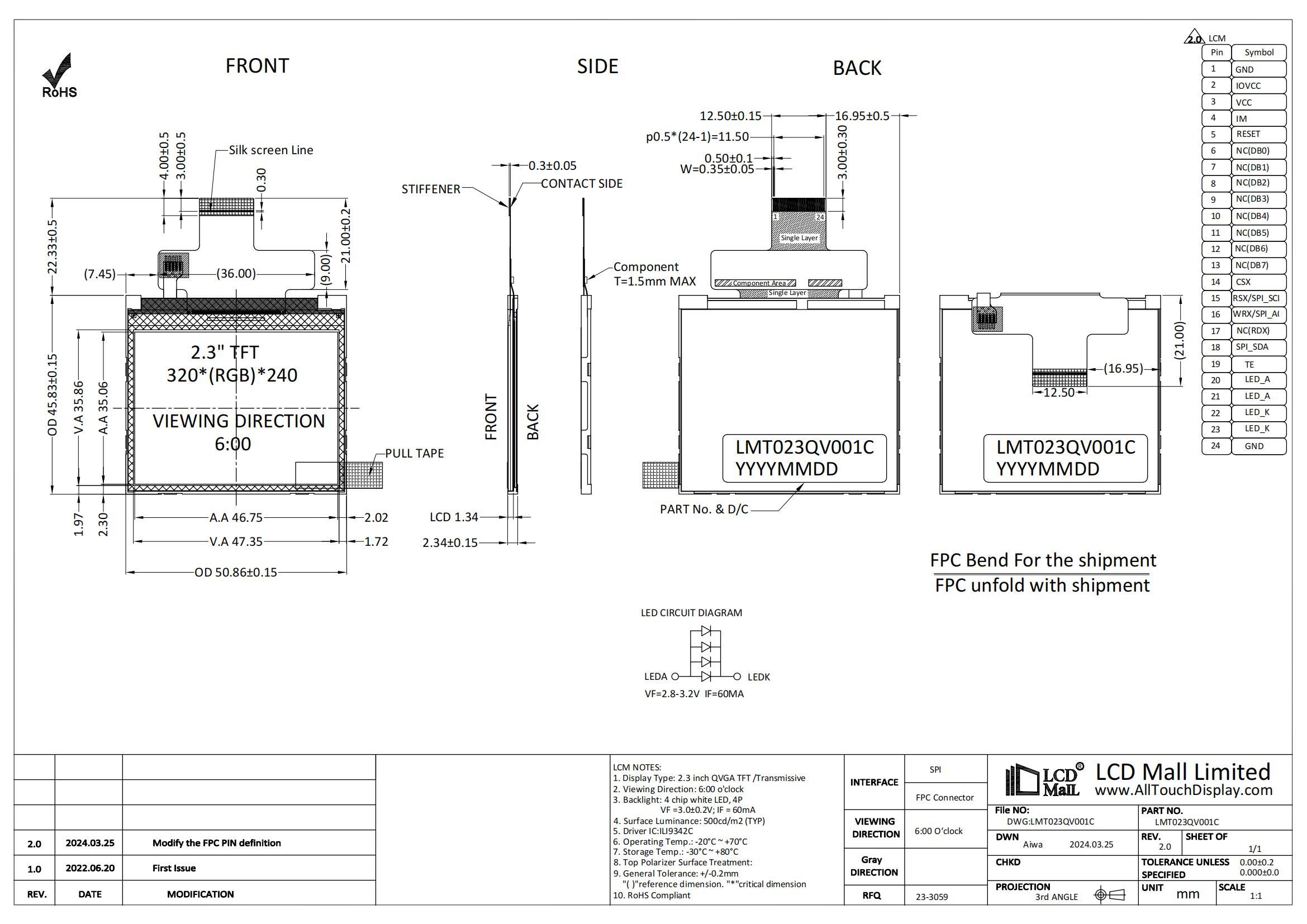

Structural Diagram
