LCD Size : 2.4 inch
OD Size (mm) : 41.32*57.56*2.33
AA Size (mm) : 36.72*48.96
PIN No.: 45PIN
Interface: 支持2data/3/4 line-SPI /MPU(8/9/16/18bit)/RGB
Drive IC: ST7789T3

Backlight LEDs: 80mA
Operating Temp. : -20℃~ + 70℃
Storage Temp.: -30℃~+ 80℃
The 2.4 inch TFT LCD display is a compact and versatile visual solution designed for applications that require clear color presentation and stable performance in limited space. With reliable TFT technology, it delivers sharp images, consistent brightness, and fast response time. This display size is commonly used in industrial controllers, medical instruments, handheld terminals, and smart devices. Its balanced resolution and low power consumption make it suitable for long-term operation, while flexible interface options allow easy integration into various electronic systems.

重量

Smart TFT Module
- 1-20
- 21-50
- 51-100

Quantity

Stock

300

隐藏域元素占位

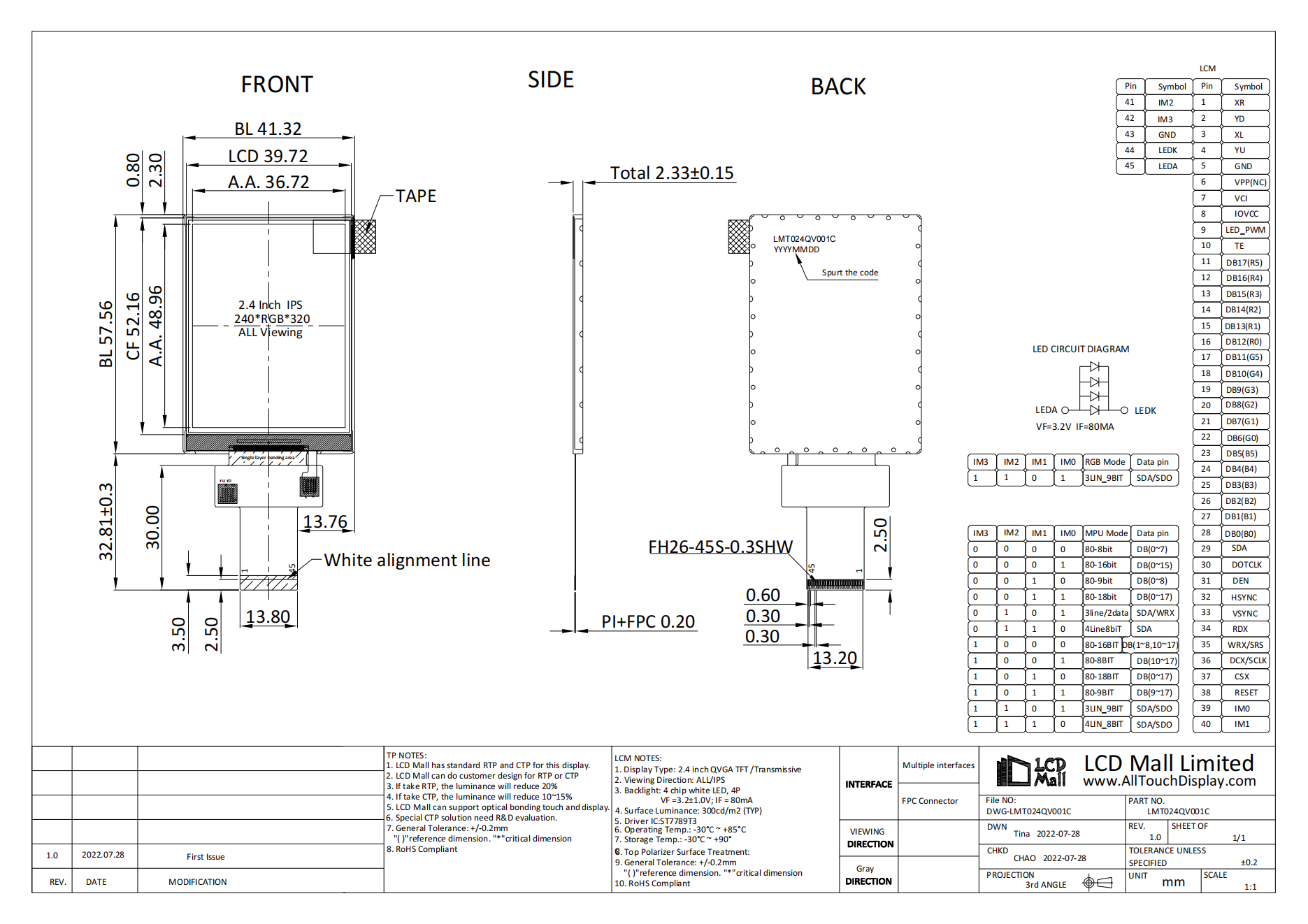

Product Introduction Specification Structural Diagram

Product Introduction

LMT024QV001C is a full color 240(R.G.B)*320 TFT LCD display module, diagonal size 2.4 inch. This module is built in with ST7789T3 IC; it supports 45pin SPI interface. This model is having module dimension of 41.32*57.56*2.33mm and Active area size of 36.72*48.96mm.

This 2.4" TFT LCD display with ST7789T3 IC is featured with brightness 300 cd/m2(typical value). it can be operating at temperatures from -20℃ to 70℃; its storage temperatures range from -30℃ to 80℃. LMT024QV001C-It can be used in any embedded systems,industrial device.

Support customized touch, brightness, interface, resolution. Please leave detailed information and our team will contact you quickly to provide you with a solution.

Feature			Spec
LCM	Characteristics	Size	2.4inch
		Resolution	240(horizontal)*320(Vertical)
		Interface	SPI/MPU/RGB
		Connect type	ZIF
		Display Colors	262K
		Technology type	a-Si
		Pixel pitch (mm)	0.153x 0.153
		Pixel Configuration	RGB.Stripe
		Display Mode	Normally Black
		Driver IC	ST7789T3
		Viewing Direction	ALL Viewing
		Gray Scale Inversion Direction	FREE
	Mechanical	LCM (WxHxD)(mm)	41.3257.562.33
		Active Area(mm)	36.72*48.96
		With/Without TSP	Without
		Weight (g)	--
		LED Numbers	4LEDS
