Model No: LMT028HV005C-FC029
2.8 inch Touch Panel 480*480 3SPI+18 RGB Interface TFT LCD Display with CTP
Retail price
$ 30
Market price
$ 60
LCD Size : 2.8 inch
OD Size (mm) : 85*85*3.5
AA Size (mm) : 70.13*70.13
PIN No.: 40PIN
Interface: 3SPI+18RGB
Drive IC: ST7701SN
Backlight LEDs: 80mA
Operating Temp. : -20℃~ + 70℃
Storage Temp.: -30℃~+ 80℃
重量
-
Smart TFT Module
- 1-20
- 21-50
- 51-100
Stock
300
隐藏域元素占位
Product Introduction
LMT028HV005C-FC029 is a full color 480(R.G.B)*480 TFT LCD display module, diagonal size 2.8 inch. This module is built in with ST7701SN IC; it supports 40pin SPI interface. This model is having module dimension of 85*85*3.5mm and Active area size of 70.13*70.13mm.
This 2.8" TFT LCD display with ST7701SN IC is featured with brightness 255 cd/m2(typical value). it can be operating at temperatures from -20℃ to 70℃; its storage temperatures range from -30℃ to 80℃. LMT028HV005C-FC029-It can be used in any embedded systems,industrial device.
Support customized touch, brightness, interface, resolution. Please leave detailed information and our team will contact you quickly to provide you with a solution.

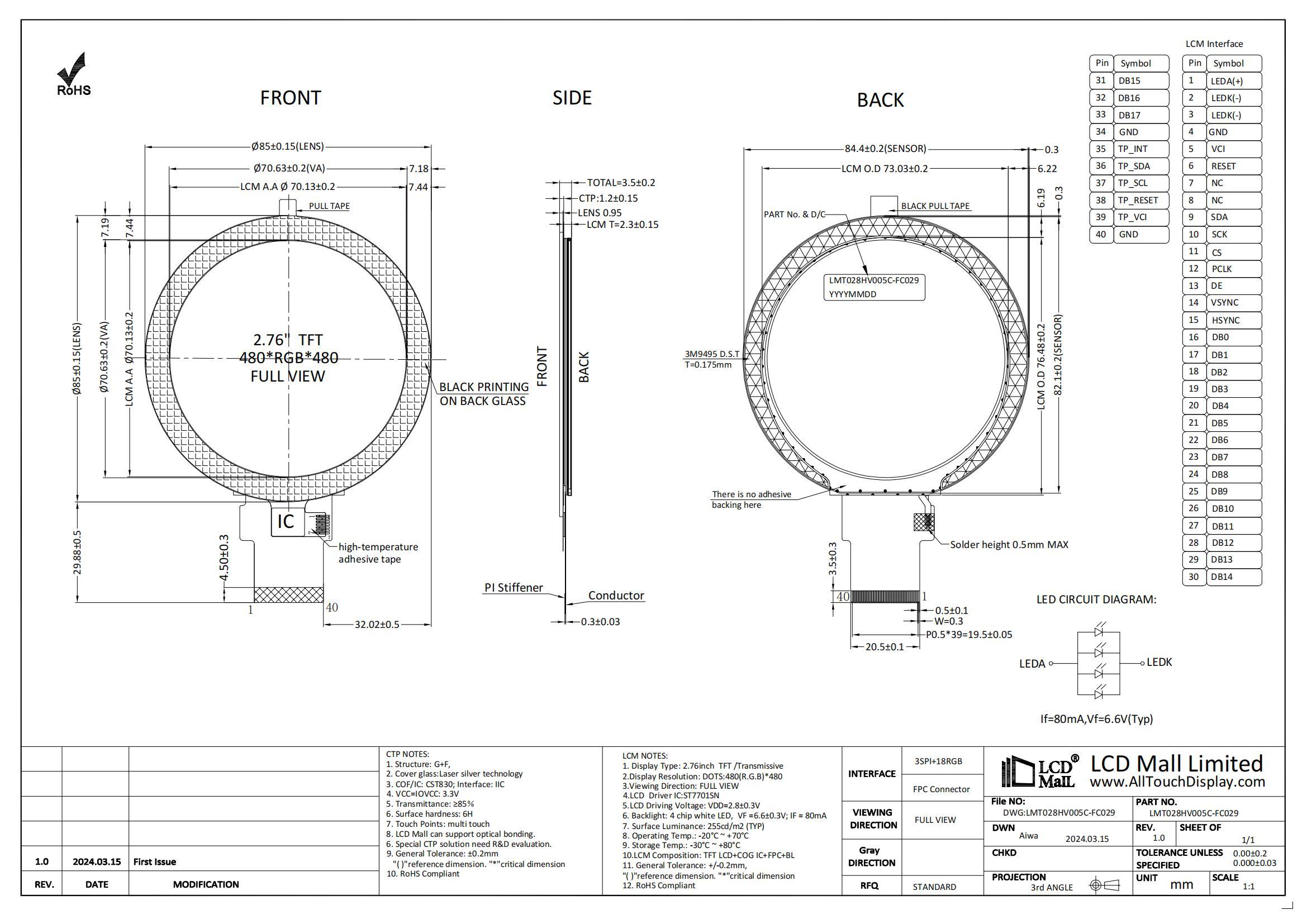

Structural Diagram
