Model No: LMT028QV007U
2.8 inch 240*320 850nits High brightness 4Line SPI Interface TFT LCD Module
Retail price
$ 11
Market price
$ 22
LCD Size : 2.8 inch
OD Size (mm) : 50*69.2*2.46
AA Size (mm) : 43.2*57.6
PIN No.: 40PIN
Interface: 4Line SPI
Drive IC: ST7789V
Backlight LEDs: 120mA
Operating Temp. : -20℃~ + 70℃
Storage Temp.: -30℃~+ 80℃
重量
-
Smart TFT Module
- 1-20
- 21-50
- 51-100
Stock
300
隐藏域元素占位
Product Introduction
LMT028QV007U is a full color 240(R.G.B)*320 TFT LCD display module, diagonal size 2.8 inch. This module is built in with ST7789V IC; it supports 40pin SPI interface. This model is having module dimension of 50*69.2*2.46mm and Active area size of 43.2*57.6mm.
This 2.8" TFT LCD display with ST7789V IC is featured with brightness 850 cd/m2(typical value). it can be operating at temperatures from -20℃ to 70℃; its storage temperatures range from -30℃ to 80℃. LMT028QV007U-It can be used in any embedded systems,industrial device.
Support customized touch, brightness, interface, resolution. Please leave detailed information and our team will contact you quickly to provide you with a solution.
Feature | Spec | ||
LCM | Characteristics | Size | 2.8inch |
Resolution | 240(horizontal)*320(Vertical) | ||
Interface | 4-line SPI | ||
Connect type | Connector | ||
Display Colors | 262K | ||
Technology type | a-Si TFT | ||
Pixel pitch (mm) | 0.180(H)×RGB×0.180(V) | ||
Pixel Configuration | R.G.B.Vertical Stripe | ||
Display Mode | Normally Black | ||
LCD Driver IC | ST7789V | ||
Touch Driver IC | -- | ||
Surface Treatment | -- | ||
Mechanical | LCM (WxHxD)(mm) | 50(H)x69.2(V)x2.46(T) | |
Active Area(mm) | 43.2(H)x57.6(V) | ||
With/Without TSP | Without TSP | ||
Weight(g) | 11±3g | ||
LED Numbers | 6 | ||

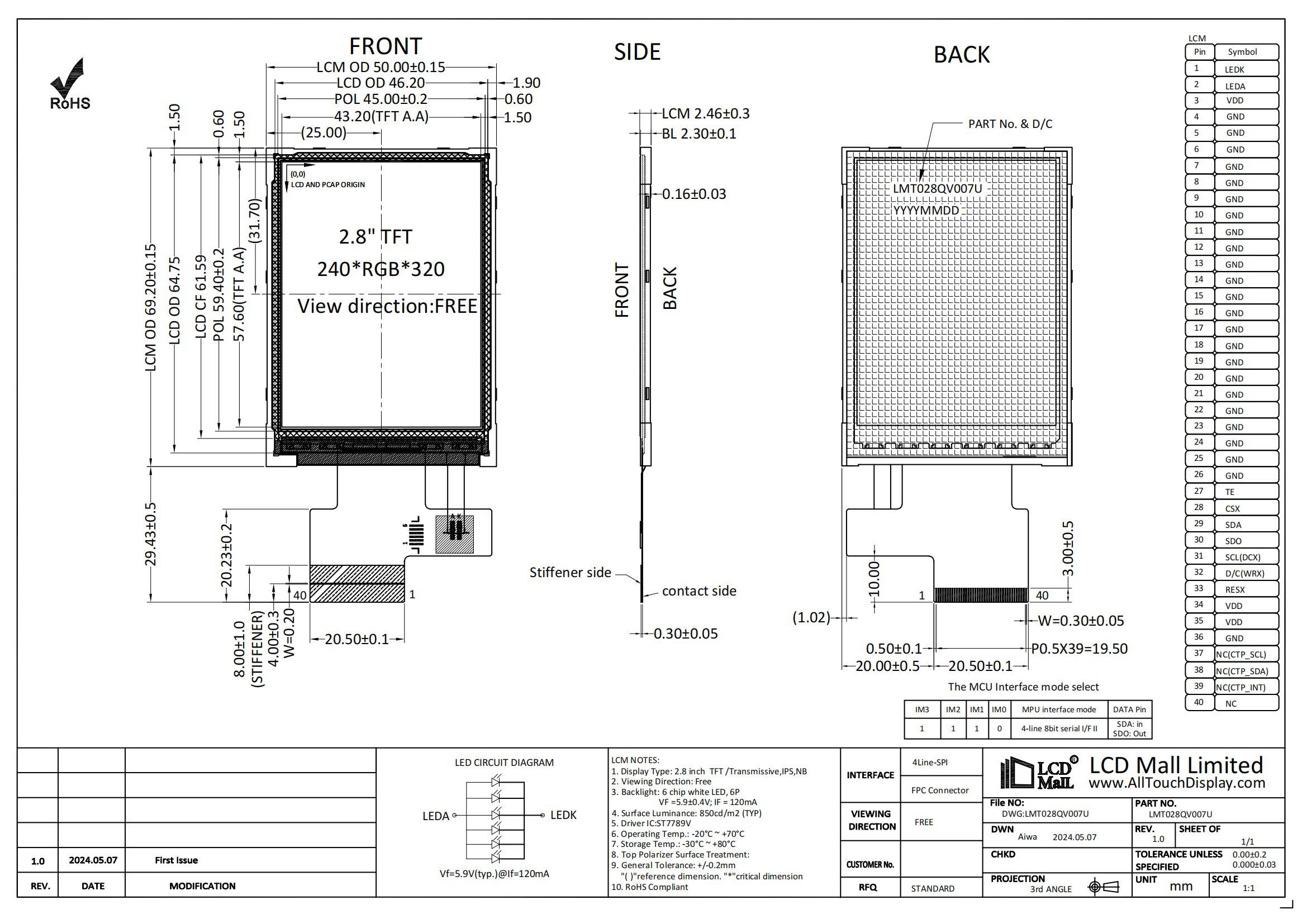

Structural Diagram
