2.8 inch 240*320 Multiple Interface TFT LCD Module

Retail price

$ 9

Market price

$ 18

LCD Size : 2.8 inch
OD Size (mm) : 50*69.2*2.23
AA Size (mm) : 43.2*57.6
PIN No.: 45PIN
Interface: Multiple interfaces
Drive IC: ST7789T3

Backlight LEDs: 80mA
Operating Temp. : -20℃~ + 70℃
Storage Temp.: -30℃~+ 80℃

The 2.8 inch sunlight readable TFT is designed for high-visibility performance in bright outdoor environments. With its advanced anti-glare technology and high-brightness backlight, this display ensures crisp and clear visuals even under direct sunlight. Ideal for industrial, automotive, and marine applications, the 2.8 inch sunlight readable TFT delivers reliable readability in challenging lighting conditions.

Featuring a robust construction, this TFT display offers excellent durability and resistance to harsh weather. The 2.8 inch sunlight readable TFT supports a wide operating temperature range, making it suitable for extreme environments. Its compact size and lightweight design allow for easy integration into portable devices and fixed installations alike.

Equipped with a high-resolution screen, the 2.8 inch sunlight readable TFT provides sharp images and vibrant colors. The display supports multiple input interfaces, including SPI and RGB, ensuring compatibility with various control systems. Whether used in GPS devices, handheld instruments, or outdoor signage, this TFT guarantees optimal performance.

Upgrade your equipment with the 2.8 inch sunlight readable TFT for unmatched visibility and reliability. Its energy-efficient design and long lifespan make it a cost-effective solution for demanding applications. Trust this display to deliver consistent performance wherever clarity matters most.

重量

Smart TFT Module
- 1-20
- 21-50
- 51-100

Quantity

Stock

300

隐藏域元素占位

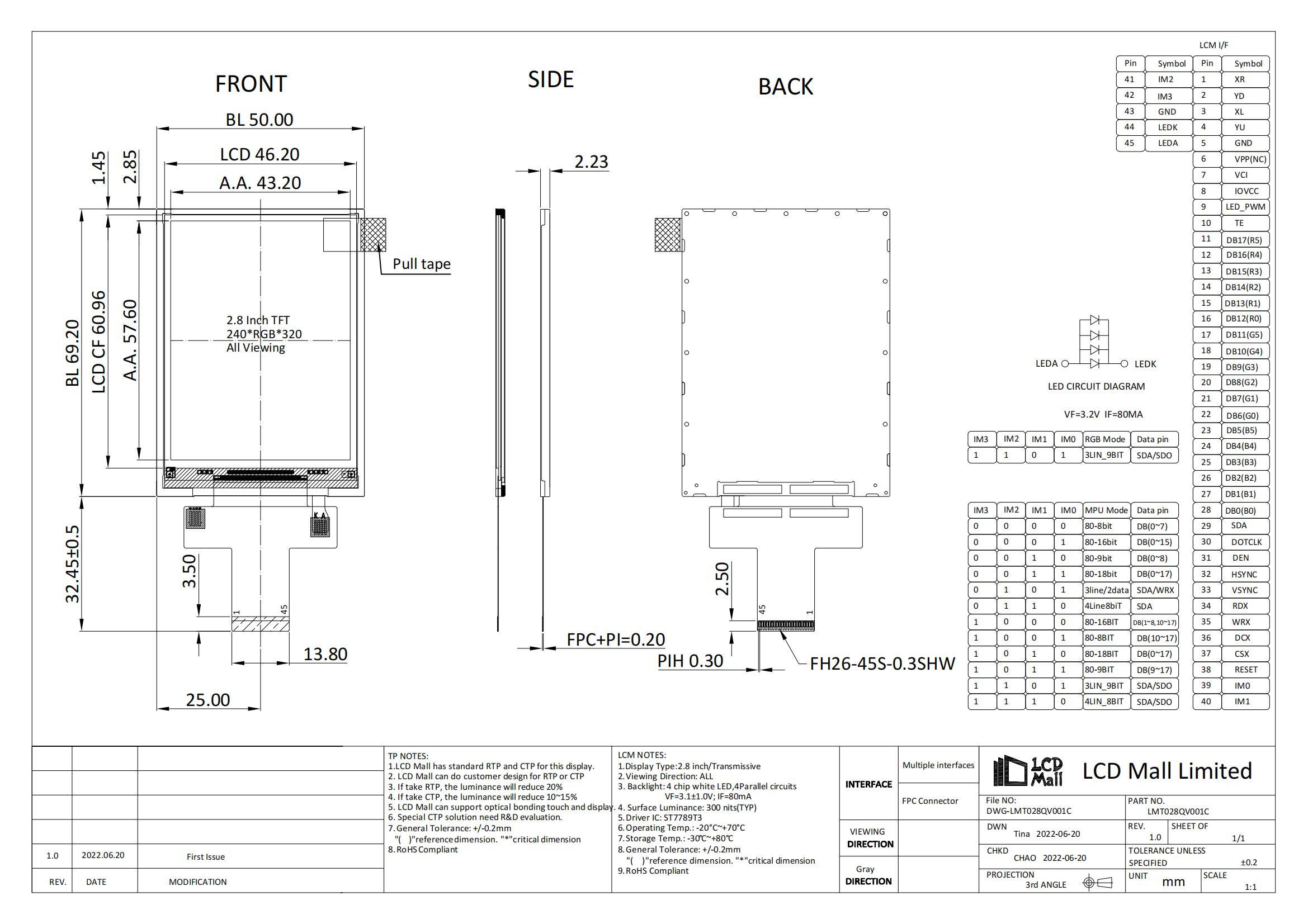

Product Introduction Specification Structural Diagram

Product Introduction

LMT028QV001C is a full color 240(R.G.B)*320 TFT LCD display module, diagonal size 2.8 inch. This module is built in with ST7789T3 IC; it supports 45pin SPI interface. This model is having module dimension of 50*69.2*2.23mm and Active area size of 43.2*57.6mm.

This 2.8" TFT LCD display with ST7789T3 IC is featured with brightness 300 cd/m2(typical value). it can be operating at temperatures from -20℃ to 70℃; its storage temperatures range from -30℃ to 80℃. LMT028QV001C-It can be used in any embedded systems,industrial device.

Support customized touch, brightness, interface, resolution. Please leave detailed information and our team will contact you quickly to provide you with a solution.

Feature		Spec
Characteristics	Size	2.8inch
	Resolution	240(horizontal)*320(Vertical)
	Interface	SPI/MPU/RGB
	Connect type	ZIF
	Display Colors	262K
	Technology type	a-Si
	Pixel pitch (mm)	0.18x0.18
	Pixel Configuration	RGB.Stripe
	Display Mode	Normally Black
	Driver IC	ST7789T3
	Viewing Direction	FULL
	Gray Scale Inversion Direction	FREE
Mechanical	LCM (WxHxD)(mm)	5069.22.23
	Active Area(mm)	43.2*57.6
	With/Without TSP	Without
	Weight(g)	10g
	LED Numbers	4LEDs
