Model No: LM096QQ03HN
0.96 inch 80*160 SPI Interface TFT LCD Module
Retail price
$ 96
Market price
$ 100
LCD Size : 0.96 inch
OD Size (mm) : 13.5*27.95*1.5
AA Size (mm) : 10.8*21.7
PIN No.: 11PIN
Interface: SPI
Drive IC: ST7735S
Operating Temp. : -20℃~ + 70℃Mm
Storage Temp.: -20℃~ + 70℃
重量
Stock
100
隐藏域元素占位
Product Introduction
LM096QQ03HN is a full color 80(R.G.B)*160 TFT LCD display module, diagonal size 0.96 inch. This module is built in with ST7735S IC; it supports 11pin SPI interface. This model is having module dimension of 13.5 x 27.95 x 1.5mm and Active area size of 10.8 x 21.7 mm.
This 0.96" TFT LCD display with ST7735S IC is featured with brightness 400 cd/m2(typical value). it can be operating at temperatures from -20℃ to 70℃; its storage temperatures range from -20℃ to 70℃. LM096QQ03HN-It can be used in any embedded systems,industrial device.
Support customized touch, brightness, interface, resolution. Please leave detailed information and our team will contact you quickly to provide you with a solution.

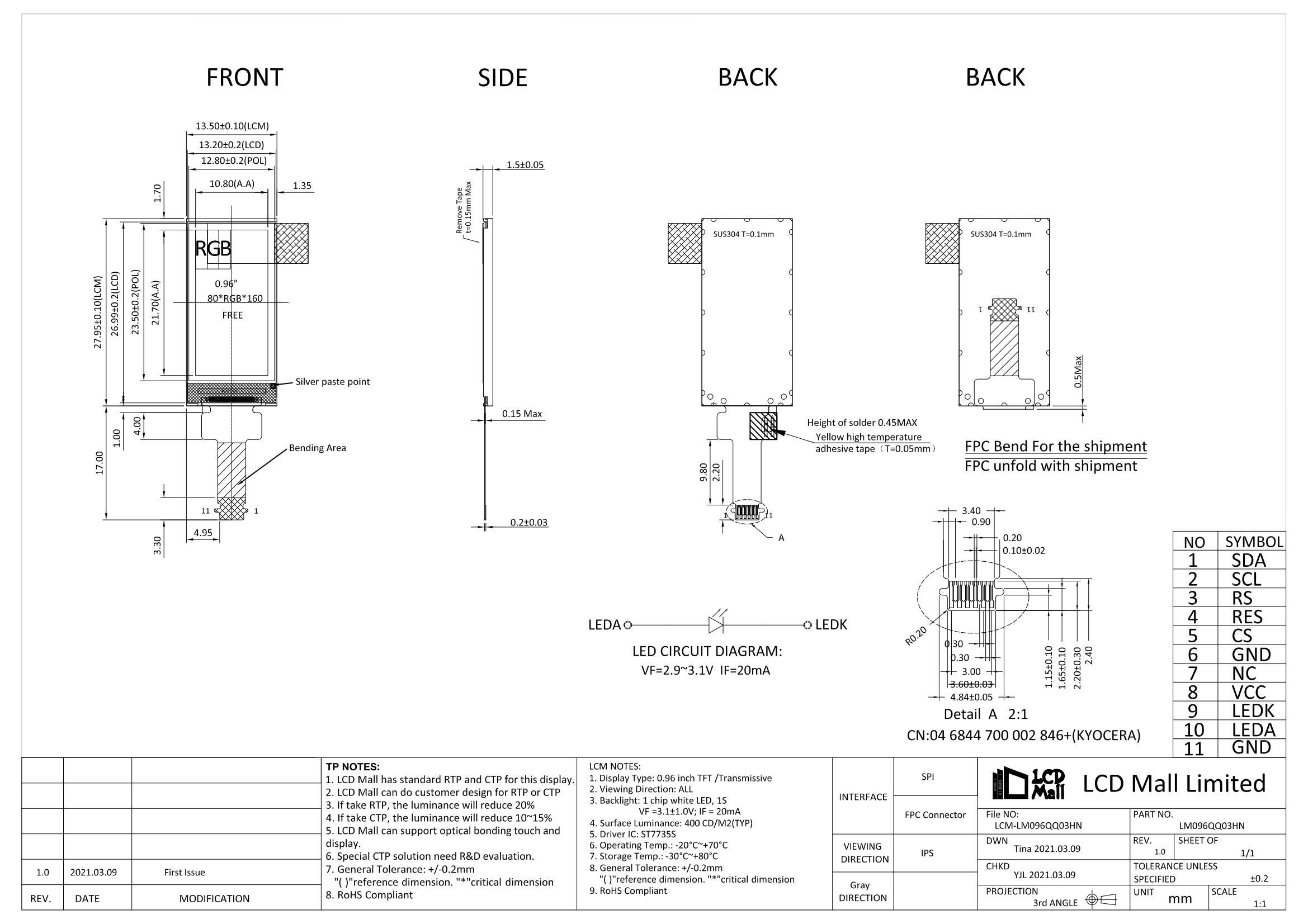

Structural Diagram
