Model No: LMT015QV001C
1.54 inch 240*240 4-SPI Interface TFT LCD Module
Retail price
$ 95
Market price
$ 100
LCD Size : 1.54 inch
OD Size (mm) : 31.52*33.72*1.51
AA Size (mm) : 27.72*27.72
PIN No.: 15PIN
Interface: 4-SPI
Drive IC: ST7789V2
Operating Temp. : -20℃~ + 70℃
Storage Temp.: -30℃~+ 80℃
重量
Stock
100
隐藏域元素占位
Product Introduction
LMT015QV001C is a full color 240(R.G.B)*240 TFT LCD display module, diagonal size 1.54 inch. This module is built in with ST7789V2 IC; it supports 15pin SPI interface. This model is having module dimension of 31.52*33.72*1.51mm and Active area size of 27.72*27.72 mm.
This 1.54" TFT LCD display with ST7789V2 IC is featured with brightness 400 cd/m2(typical value). it can be operating at temperatures from -20℃ to 70℃; its storage temperatures range from -30℃ to 80℃. LMT015QV001C-It can be used in any embedded systems,industrial device.
Support customized touch, brightness, interface, resolution. Please leave detailed information and our team will contact you quickly to provide you with a solution.
| Feature | Spec | ||
| LCM | Characteristics | Size | 1.54inch |
| Resolution | 240(horizontal)*240(Vertical) | ||
| Interface | 4-line 8bit serial | ||
| Connect type | Connector | ||
| Display Colors | 262K | ||
| Technology type | a-Si | ||
| Pixel pitch (mm) | 0.1026(H)×RGB×0.1026(V) | ||
| Pixel Configuration | R.G.B.Vertical Stripe | ||
| Display Mode | Normally Black | ||
| LCD Driver IC | ST7789V2 | ||
| Touch Driver IC | WITHOUT | ||
| Surface Treatment | -- | ||
| Mechanical | LCM(WxHxD)(mm) | 31.52(H)x33.72(V)x1.51(T) | |
| Active Area(mm) | 27.72(H)x27.72(V) | ||
| With/Without TSP | Without TSP | ||
| Weight (g) | TBD | ||
| LED Numbers | 3 LEDs | ||

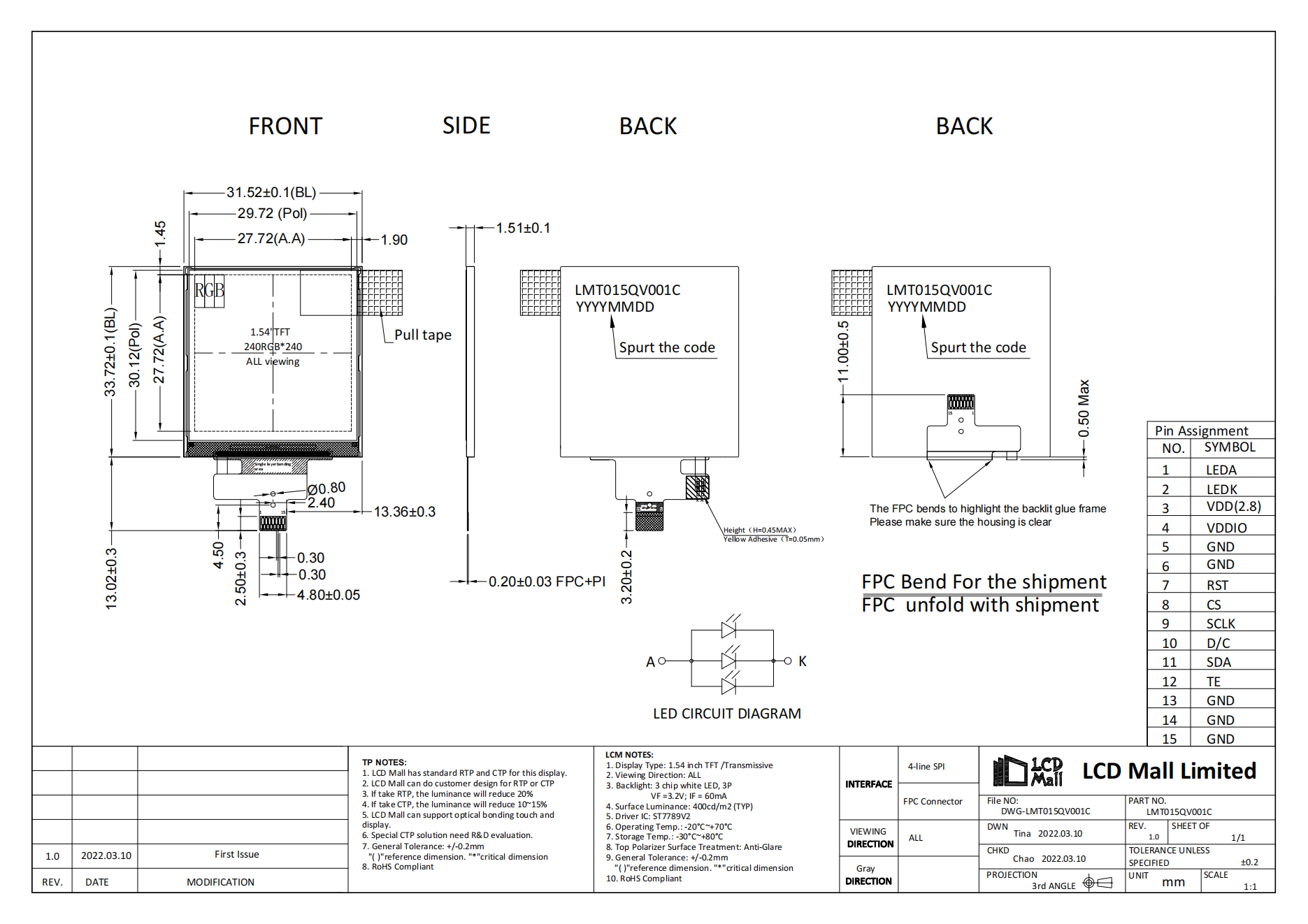

Structural Diagram
