1.8 inch 128*160 4Line SPI Interface TFT LCD Module

Retail price

$ 95

Market price

$ 100

LCD Size : 1.8 inch
OD Size (mm) : 34.64* 46.70*2.7
AA Size (mm) : 28.03*35.04
PIN No.: 20PIN
Interface: 4Line SPI
Drive IC: ST7735S
Operating Temp. : -20℃~ + 70℃
Storage Temp.: -30℃~+ 80℃

重量

Quantity

Stock

100

ADD TO CART

BUY NOW

隐藏域元素占位

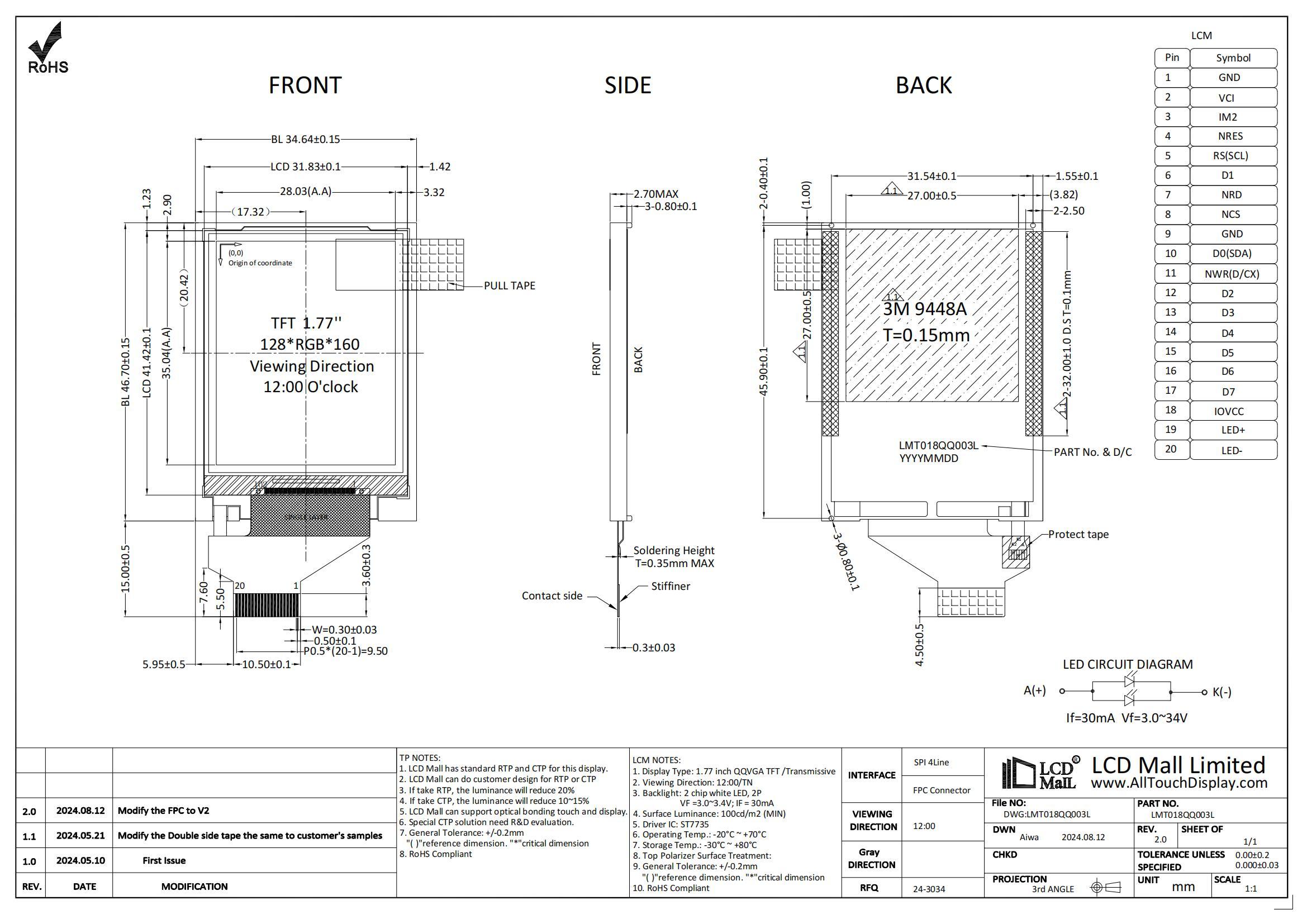

Product Introduction Specification Structural Diagram

Product Introduction

LMT018QQ003L is a full color 128(R.G.B)*160 TFT LCD display module, diagonal size 1.8 inch. This module is built in with ST7735S IC; it supports 20pin SPI interface. This model is having module dimension of 34.64* 46.70*2.7mm and Active area size of 28.03*35.04 mm.

This 1.8" TFT LCD display with ST7735S IC is featured with brightness 100 cd/m2(typical value). it can be operating at temperatures from -20℃ to 70℃; its storage temperatures range from -30℃ to 80℃. LMT018QQ003L-It can be used in any embedded systems,industrial device.

Support customized touch, brightness, interface, resolution. Please leave detailed information and our team will contact you quickly to provide you with a solution.

Feature			Spec
LCM	Characteristics	Size	1.77 inch
		Resolution	128(horizontal)*160(Vertical)
		Interface	SPI-4Line
		Connect type	ZIF
		Display Colors	65K
		Technology type	a-Si
		Pixel pitch (mm)	0.183x0.183
		Pixel Configuration	RGB Stripe
		Display Mode	Normally White
		LCD Driver IC	ST7735
		View direction	12 o'clock
	Mechanical	LCM(WxHxD)(mm)	34.64(H)x46.7(V)x2.70(T)
		Active Area(mm)	28.03(H)×35.04(V)
		With/Without TSP	Without TSP
		Weight(g)	6.13±0.3g
		LED Numbers	2LEDs
