LCD Size : 2.0 inch
OD Size (mm) : 41.19*48.4*3.57
AA Size (mm) : 30.6*40.8
PIN No.: 22PIN
Interface: SPI3/4 line interfaces
Drive IC: ST7789V2
Operating Temp. : -20℃~ + 70℃
Storage Temp.: -30℃~+ 80℃

重量

Smart TFT Module
- 1-20
- 21-50
- 51-100

Quantity

Stock

300

隐藏域元素占位

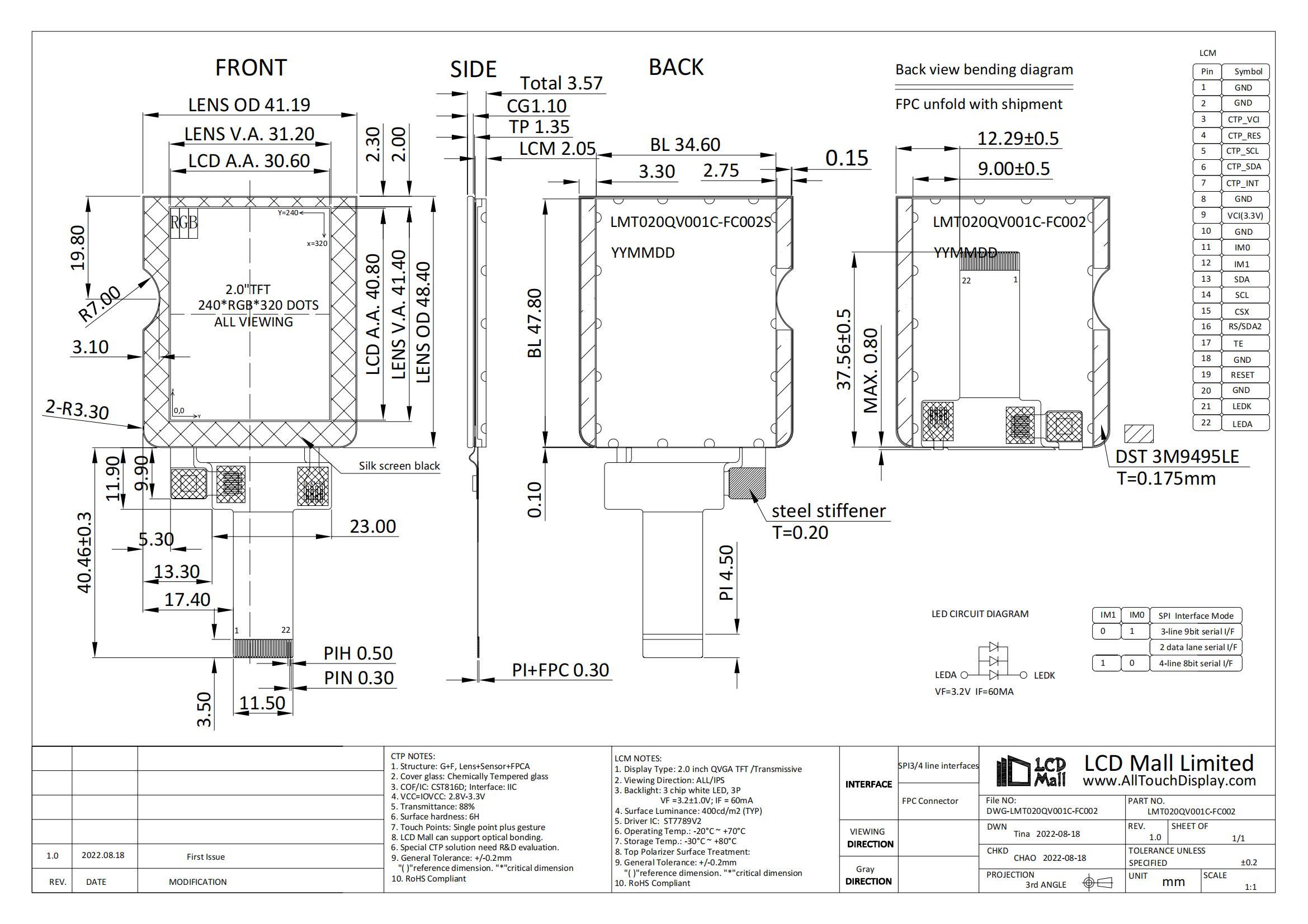

Product Introduction Specification Structural Diagram

Product Introduction

LMT020QV001C-FC002 is a full color 240(R.G.B)*320 TFT LCD display module, diagonal size 2.0 inch. This module is built in with ST7789V2 IC; it supports 22pin SPI interface. This model is having module dimension of 41.19*48.4*3.57mm and Active area size of 30.6*40.8mm.

This 2.0" TFT LCD display with ST7789V2 IC is featured with brightness 400 cd/m2(typical value). it can be operating at temperatures from -20℃ to 70℃; its storage temperatures range from -30℃ to 80℃. LMT020QV001C-FC002-It can be used in any embedded systems,industrial device.

Support customized touch, brightness, interface, resolution. Please leave detailed information and our team will contact you quickly to provide you with a solution.

Type

TFT

Display Size

2.0 inch

Supplier Type

supplier

Place of Origin

Guangdong, China

Brand Name

LCD Mall

LCD Type

IPS TFT
