Model No: LMT024QV001C-DR001
2.4 inch Touch Panel 240*320 Multiple Interface TFT LCD Display with RTP
Retail price
$ 9
Market price
$ 18
LCD Size : 2.4 inch
OD Size (mm) : 41.32*57.56*3.47
AA Size (mm) : 36.72 * 48.96
PIN No.: 45PIN
Interface: Multiple interfaces
Drive IC: ST7789T3
Backlight LEDs: 80mA
Operating Temp. : -20℃~ + 70℃
Storage Temp.: -30℃~+ 80℃
重量
-
Smart TFT Module
- 1-20
- 21-50
- 51-100
Stock
300
隐藏域元素占位
Product Introduction
LMT024QV001C-DR001 is a full color 240(R.G.B)*320 TFT LCD display module, diagonal size 2.4 inch. This module is built in with ST7789T3 IC; it supports 45pin SPI interface. This model is having module dimension of 41.32*57.56*3.47mm and Active area size of 36.72 * 48.96mm.
This 2.4" TFT LCD display with ST7789T3 IC is featured with brightness 230 cd/m2(typical value). it can be operating at temperatures from -20℃ to 70℃; its storage temperatures range from -30℃ to 80℃. LMT024QV001C-DR001-It can be used in any embedded systems,industrial device.
Support customized touch, brightness, interface, resolution. Please leave detailed information and our team will contact you quickly to provide you with a solution.
Feature | Spec | ||
LCM | Characteristics | Size | 2.4inch |
Resolution | 240(horizontal)*320(Vertical) | ||
Interface | SPI/MPU/RGB | ||
Connect type | ZIF | ||
Display Colors | 262K | ||
Technology type | a-Si | ||
Pixel pitch (mm) | 0.153x0.153 | ||
Pixel Configuration | RGB.Stripe | ||
Display Mode | Normally Black | ||
Driver IC | ST7789T3 | ||
Viewing Direction | ALL Viewing | ||
Gray Scale Inversion Direction | FREE | ||
Mechanical | LCM (WxHx D)(mm) | 41.32*57.56*3.47 | |
Active Area(mm) | 36.72*48.96 | ||
With/Without TSP | With RTP | ||
Weight (g) | 10g | ||
LED Numbers | 4LEDs | ||

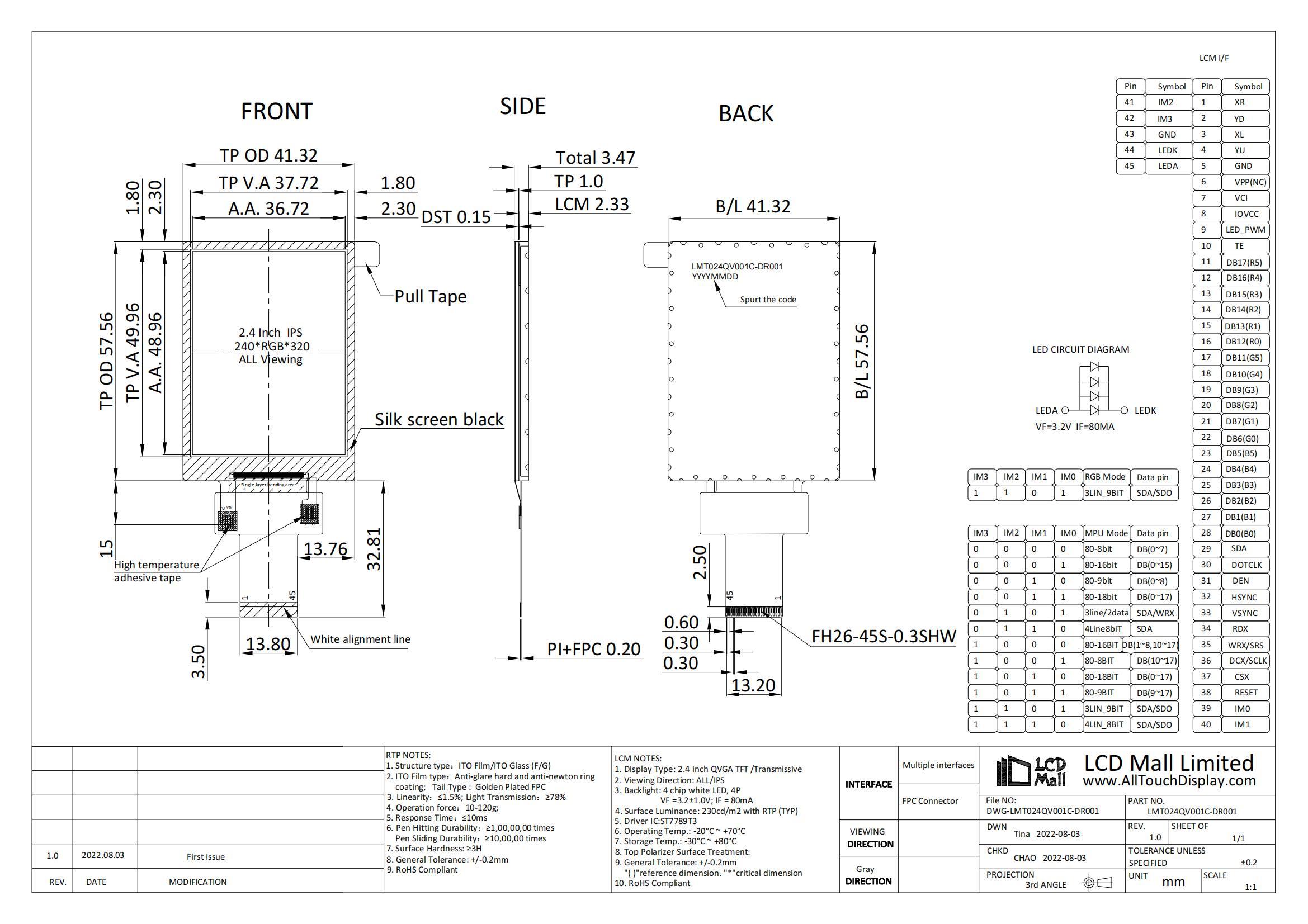

Structural Diagram
Download
Download
