LMT024QV001C-DC001 is a full color 240(R.G.B)*320 TFT LCD display module, diagonal size 2.4 inch. This module is built in with ST7789T3 IC; it supports 45pin SPI interface. This model is having module dimension of 41.32*57.56*3.58mm and Active area size of 36.72 * 48.96mm.

This 2.4" TFT LCD display with ST7789T3 IC is featured with brightness 250 cd/m2(typical value). it can be operating at temperatures from -20℃ to 70℃; its storage temperatures range from -30℃ to 80℃. LMT024QV001C-DC001-It can be used in any embedded systems,industrial device.

Support customized touch, brightness, interface, resolution. Please leave detailed information and our team will contact you quickly to provide you with a solution.

Feature			Spec
LCM	Characteristics	Size	2.4inch
		Resolution	240(horizontal)*320(Vertical)
		Interface	SPI/MPU/RGB
		Connect type	ZIF
		Display Colors	262K
		Technology type	a-Si
		Pixel pitch (mm)	0.153x0.153
		Pixel Configuration	RGB.Stripe
		Display Mode	Normally Black
		Driver IC	ST7789T3
		Viewing Direction	ALL Viewing
		Gray Scale Inversion Direction	FREE

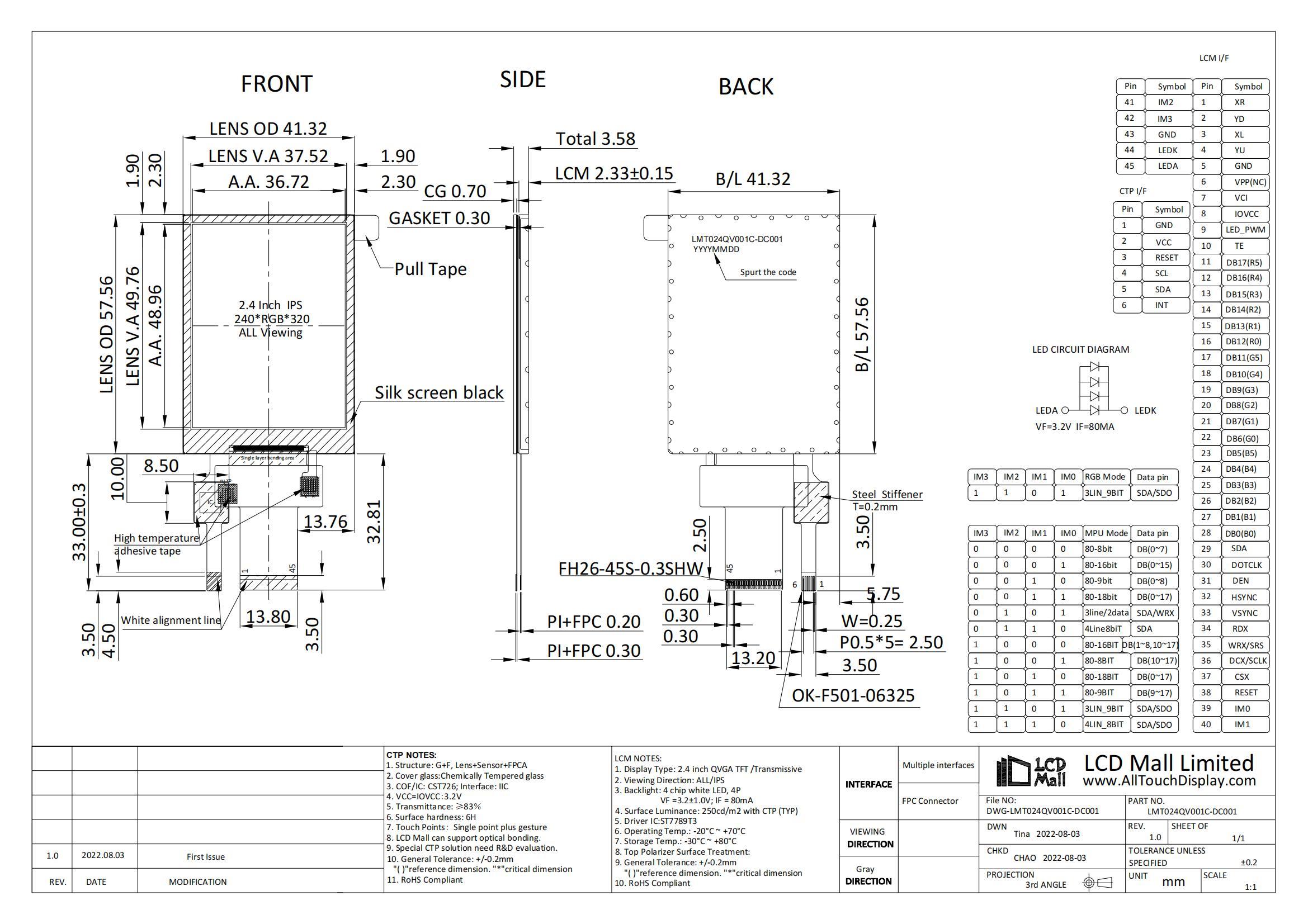

	Mechanical	LCM (WxHxD)(mm)	41.3257.562.33
		Active Area(mm)	36.72*48.96
		With/Without TSP	CTP
		Weight(g)	--g
		LED Numbers	4LEDs
TP	Characteristics	CTP Structure	G+F
		CTP Lens OD	41.3257.560.95(Without gasket)
		CTP Lens VA	37.52*49.76
		Drive IC	GST726
		Supply voltage	3.2V
		Interface type	12C
		Connector type	ZIF
		Transmittance of view area	≥83%
		Hardness	≥6H
