Model No: LMT034SV002C-FC002
3.4 inch Touch Screen 800*800 MIPI 3LINE Interface Round TFT LCD Display with CTP
Retail price
$ 40
Market price
$ 80
LCD Size : 3.4 inch
OD Size (mm) : 111.2*111.2*3.55
AA Size (mm) : 87.6*87.6
PIN No.: 30PIN
Interface: MIPI-3LINE
Drive IC: JD9365DA
Backlight LEDs: 40mA
Operating Temp. : -20℃~ + 70℃
Storage Temp.: -25℃~+ 75℃
重量
-
Smart TFT Module
- 1-20
- 21-50
- 51-100
Stock
300
隐藏域元素占位
Product Introduction
LMT034SV002C-FC002 is a full color 800(R.G.B)*800 TFT LCD display module, diagonal size 3.4 inch. This module is built in with JD9365DA IC; it supports 30pin SPI interface. This model is having module dimension of 111.2*111.2*3.55mm and Active area size of 87.6*87.6mm.
This 3.4" TFT LCD display with JD9365DA IC is featured with brightness 260 cd/m2(typical value). it can be operating at temperatures from -20℃ to 70℃; its storage temperatures range from -25℃ to 75℃. LMT034SV002C-FC002-It can be used in any embedded systems,industrial device.
Support customized touch, brightness, interface, resolution. Please leave detailed information and our team will contact you quickly to provide you with a solution.
Feature | Spec | ||
LCM | Characteristics | Size | 3.4 inch round |
Resolution | 800(horizontal)*800(Vertical) | ||
Interface | MIPI | ||
Connect type | Connector | ||
Display Colors | 16.7M | ||
Technology type | a-Si | ||
Pixel pitch (mm) | 0.0365(H)×RGB×0.1095(V) | ||
Pixel Configuration | R.G.B.Vertical Stripe | ||
Display Mode | Normally Black | ||
LCD Driver IC | JD9365DA | ||
Touch Driver IC | GT1151QM | ||
Surface Treatment |
| ||
Mechanical | LCM (W xHxD)(mm) | Ø111.2(H)x3.55(T) | |
Active Area(mm) | Ø87.6mm | ||
With/Without TSP | With CTP | ||
Weight (g) | TBD | ||
LED Numbers | 8 LEDs | ||

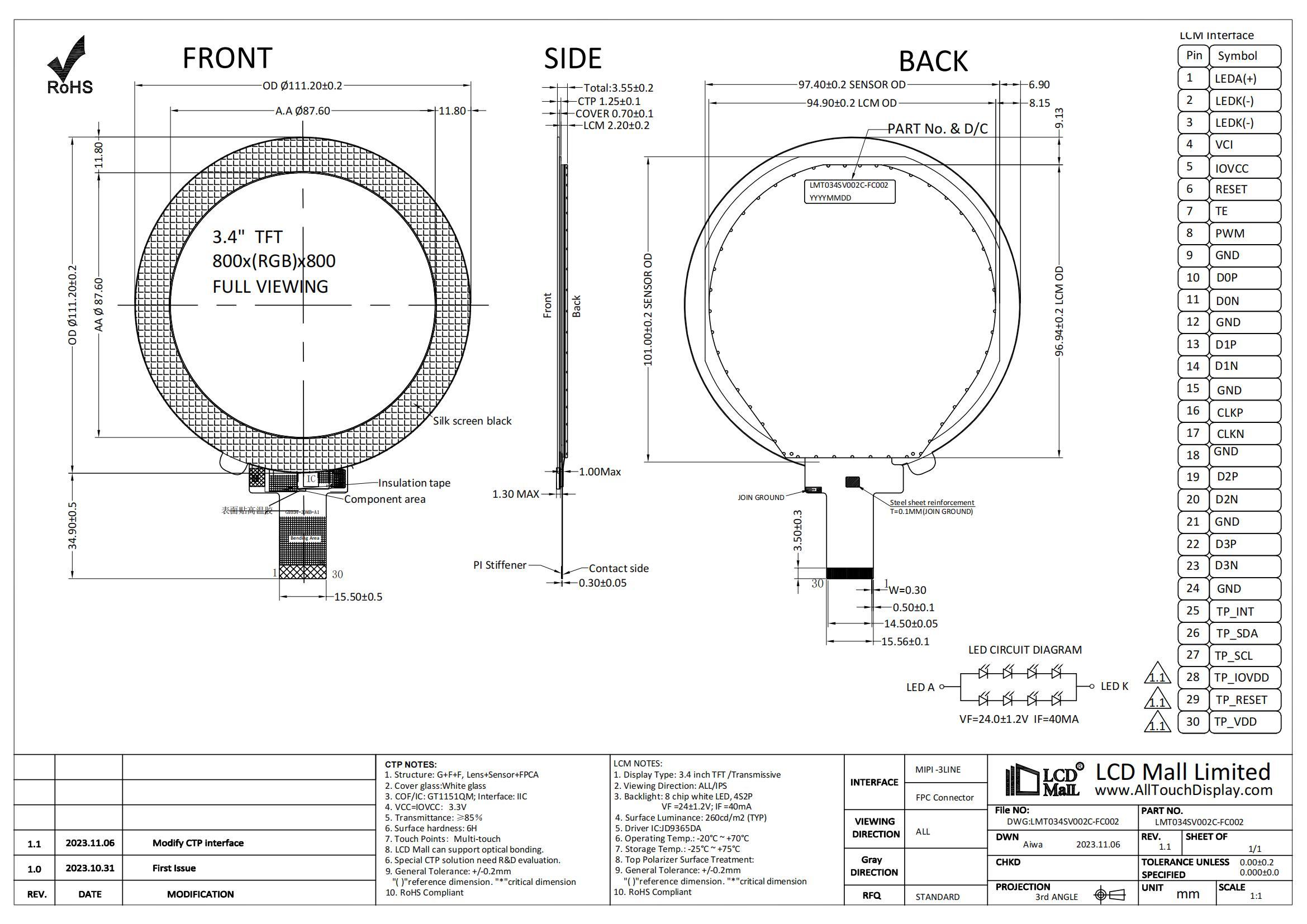

Structural Diagram
