Model No: LMT035HV012C-DR005-PZ013
3.5 inch Smart TFT Display 480*320 Multiple Interface TFT LCD Display with RTP
Retail price
$ 95
Market price
$ 100
LCD Size : 3.5 inch
OD Size (mm) : 56.34*98
AA Size (mm) : 48.96*73.44
PIN No.: 9PIN
Interface: Multiple interfaces
Drive IC: ILI9488
Backlight LEDs: 120mA
Operating Temp. : -20℃~ + 60℃
Storage Temp.: -30℃~ + 70℃
重量
Stock
隐藏域元素占位
Product Introduction
LMT035HV012C-DR005-PZ013 is a full color 480(R.G.B)*320 TFT LCD display module, diagonal size 3.5 inch. This module is built in with ILI9488 IC; it supports 9pin SPI interface. This model is having module dimension of 56.34*98mm and Active area size of 48.96*73.44mm.
This 3.5" TFT LCD display with ILI9488 IC is featured with brightness 350 cd/m2(typical value). it can be operating at temperatures from -20℃ to 60℃; its storage temperatures range from -30℃ to 70℃. LMT035HV012C-DR005-PZ013-It can be used in any embedded systems,industrial device.
Support customized touch, brightness, interface, resolution. Please leave detailed information and our team will contact you quickly to provide you with a solution.
Item | Specification |
Display colour | RGB 65K colour |
SKU | With touch:MSP3520 |
W/O touch:MSP3521 | |
Size | 3.5(inches) |
Type | TFT |
Driver IC | ILI9488 |
Resolution | 480*320 (Pixel) |
Interface | 4-wire SPI interface |
Active area | 48.96x73.44(mm) |
PCB size | 56.34x98.00(mm) |
Operating temperature | -20℃~60℃ |
Storage temperature | -30℃~70℃ |
VCC | 3.3V~5V |
Logic IO port voltage | 3.3V(TTL) |
Power consumption | / |
Weight | 57(g) |

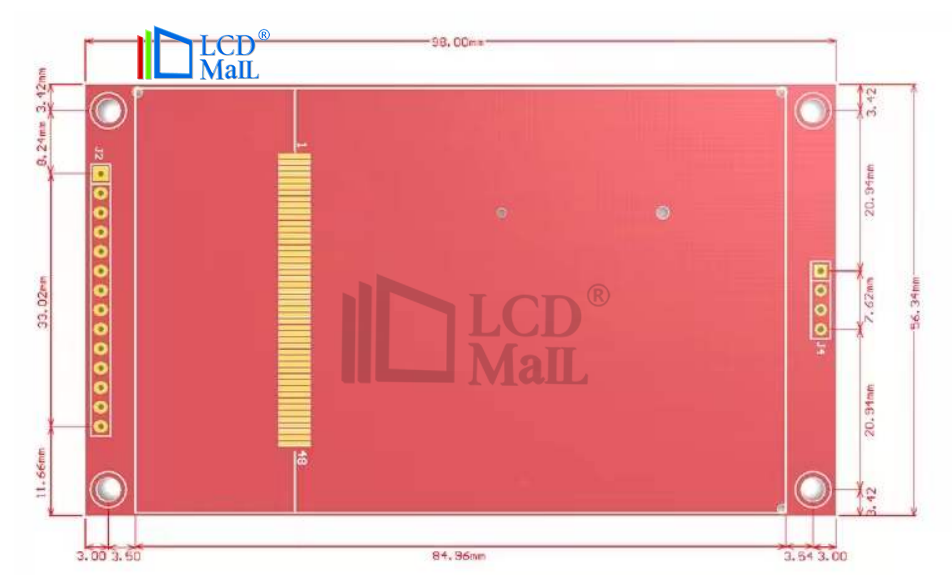

Structural Diagram
Download
Download
