Model No: LMT035QV015C
3.5 inch 320*240 350nits High brightness RGB+SPI Interface TFT LCD Module
Retail price
$ 12
Market price
$ 24
LCD Size : 3.5 inch
OD Size (mm) : 76.84*63.84*3.2
AA Size (mm) : 70.08*52.56
PIN No.: 54PIN
Interface: RGB+SPI
Drive IC: ST7272A
Backlight LEDs: 20mA
Operating Temp. : -20℃~ + 70℃
Storage Temp.: -30℃~ + 80℃
重量
-
Smart TFT Module
- 1-20
- 21-50
- 51-100
Stock
300
隐藏域元素占位
Product Introduction
LMT035QV015C is a full color 320(R.G.B)*240 TFT LCD display module, diagonal size 3.5 inch. This module is built in with ST7272A IC; it supports 54pin SPI interface. This model is having module dimension of 76.84*63.84*3.2mm and Active area size of 70.08*52.56mm.
This 3.5" TFT LCD display with ST7272A IC is featured with brightness 350 cd/m2(typical value). it can be operating at temperatures from -20℃ to 70℃; its storage temperatures range from -30℃ to 80℃. LMT035QV015C-It can be used in any embedded systems,industrial device.
Support customized touch, brightness, interface, resolution. Please leave detailed information and our team will contact you quickly to provide you with a solution.
Feature | Spec | ||
LCM | Characteristics | Size | 3.5inch |
Resolution | 320(horizontal)*240(Vertical) | ||
Interface | RGB+SPI | ||
Connect type | ZIF | ||
Display Colors | 262K | ||
Technology type | a-Si | ||
Pixel pitch (mm) | 0.218x 0.219 | ||
Pixel Configuration | RGB Stripe | ||
Display Mode | Normally Black | ||
LCD Driver IC | ST7272A | ||
Touch Driver IC | -- | ||
Surface Treatment | Hard Coating | ||
Mechanical | LCM (WxHxD)(mm) | 76.84(H)x63.84(V)x3.20(T) | |
Active Area(mm) | 70.08(H)x52.56(V) | ||
With/Without TSP | Without TSP | ||
Weight (g) | 27.67±0.5g | ||
LED Numbers | 6LEDs | ||

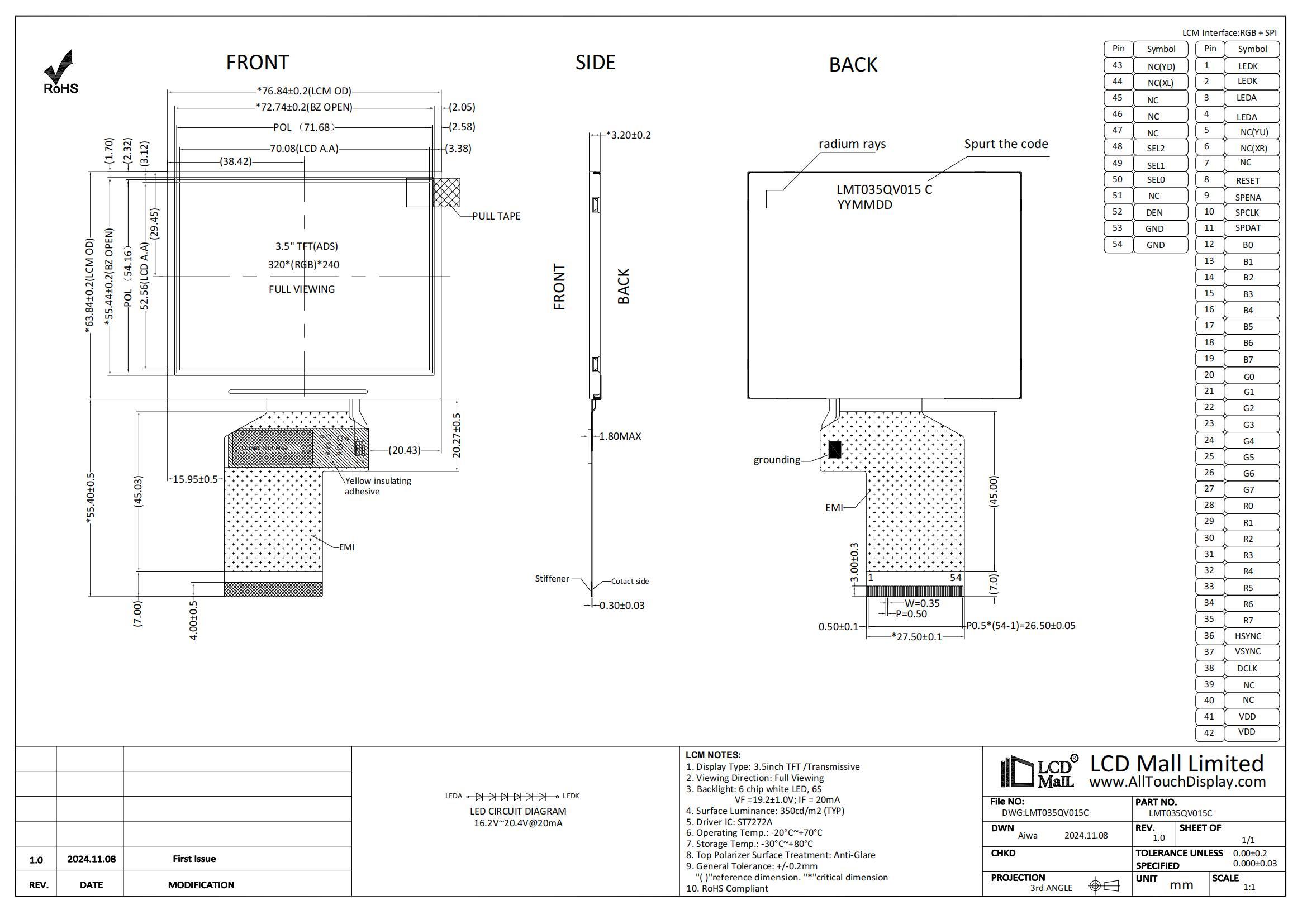

Structural Diagram
